Outline(mm)
Number of seats
Vehicle usage
| Vehicle performance parameters | Length×W×H(mm) | 8850×2550×3510，3550 |
| Wheelbase (mm) | 4200+1400 | |
| Front and rear overhang(mm) | 1500/1750 | |
| Curb weight (kg) | 17000,17800 | |
| Chassis system | Power battery | 282kWh (Lithium Iron Phosphate, CATL) |
| Drive motors | 420kw/2600N.m/3500rpm | |
| Gearbox | 4-speed gearbox (selectable force) with a first-gear ratio of 8.39 | |
| Front axle | 7T, drum type | |
| Rear | Twin 16T, drum type | |
| tyre | 12R20 | |
| Suspension system | Front and rear multi-leaf springs | |

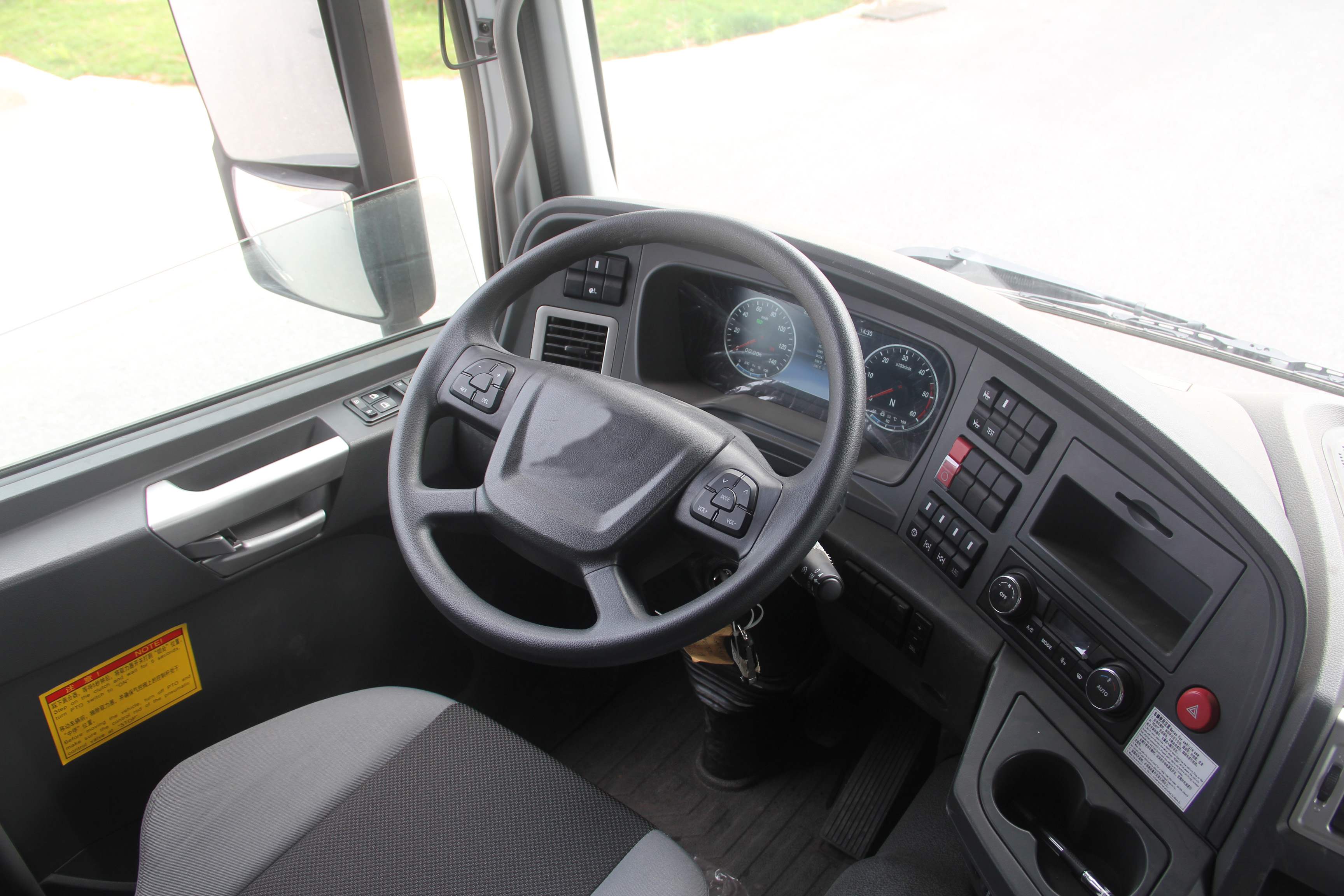

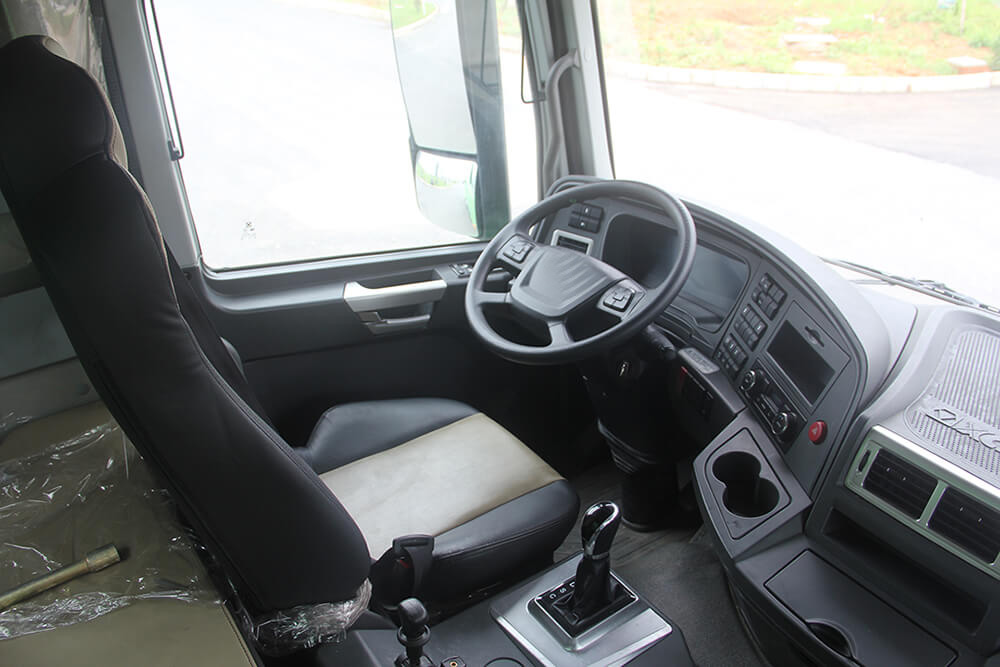

| Cab configuration | cab | Hydraulically flipped, semi-floating, three-section metal bumper |
| Driver's seat | Airbag driver's seat | |
| Top loading configuration | Topload box size (mm) | 5800,5400,5600×2350,2300× 1500,1200,950,850,800 |
| Top cover form | Integral rocker cover or butterfly cover or tarpaulin cover | |
| Special announcement | There is a conversion period due to the vehicle update and network display, the page graphic parameters may be different from the actual car, the page graphic content does not serve as the basis for the actual booking of the car, the specific models and technical parameters to determine the actual vehicle configuration shall prevail, the intended buyer please contact the Hangtian Lingrui sales staff to confirm in a timely manner, the Hangtian Lingrui to reserve the right to change the parameters of the pictures and the right of final interpretation. | |
