Outline(mm)
Number of seats
Vehicle usage
| Basic parameters | Length×W×H(mm) | 10495×2550×3160 |
| Wheelbase (mm) | 6100 | |
| Body structure | Full load | |
| Curb weight (kg) | 11400，11700 | |
| Maximum total mass (kg) | 18000 | |
| Rated capacity | 92/16-29 | |
| Suspension form | Airbag suspension | |
| Tire specifications | 275/70R22.5 | |
| Vehicle performance parameters | Battery capacity (kWh) | 282, water-cooled, CATL | 315, water-cooled, CATL |
| Drive motor power (kW) | 175/350 | |
| Maximum speed(km/h) | 69 | |
| Minimum turning diameter (m) | ≤20 | |

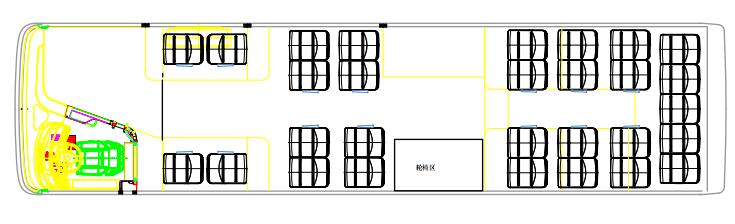

| HTK6105GBEV1 HTK6105GBEV2 Seat layout diagram |
 |
|
| Special announcement | There is a conversion period due to the vehicle update and network display, the page graphic parameters may be different from the actual car, the page graphic content does not serve as the basis for the actual booking of the car, the specific models and technical parameters to determine the actual vehicle configuration shall prevail, the intended buyer please contact the Hangtian Lingrui sales staff to confirm in a timely manner, the Hangtian Lingrui to reserve the right to change the parameters of the pictures and the right of final interpretation. | |
